How Do You Choose the Right Trowel Size for Tile Installation?

Ever stared at a wall of trowels, unsure which one will turn your tile project into a masterpiece?

Choosing the right trowel size for tile installation involves considering the tile size, surface type, and adhesive. Larger tiles need larger notched trowels for proper coverage and adhesion, making this choice crucial for a successful project.

I remember the first time I tackled a tiling job—standing in the hardware store, overwhelmed by the sheer variety of trowels. It was like being lost in a maze of metal notches. But with a bit of research and trial-and-error, I learned the importance of matching trowel size to tile dimensions, surface conditions, and adhesive types. This knowledge transformed my projects from amateur attempts to professional-quality finishes. Let me share some insights and tips I’ve gathered along the way to help you navigate this crucial decision in your tiling endeavors.

How Do You Choose the Right Trowel Size for Tiling?

Ever picked the wrong tool for a job and realized it halfway through? When it comes to tiling, choosing the right trowel size is just as crucial.

To choose the right trowel size for tile installation, think about the tile size, substrate condition, and adhesive type. Larger tiles typically need bigger notches, while smaller ones can do with smaller sizes. Also, consider how flat your surface is for the best results.

Tile Dimensions and Trowel Size

I remember my first tiling project vividly. I was determined to lay down these gorgeous 18×18 inch tiles in my kitchen. As I started, I quickly realized that my tiny 1/4 inch square-notch trowel just wasn’t cutting it. I learned the hard way that larger tiles like these require larger notches, like a 1/2 inch square-notch trowel, to ensure enough adhesive coverage.

Tile Size	Recommended Trowel Size
6×6 inch	1/4 inch square-notch
12×12 inch	3/8 inch square-notch
18×18 inch	1/2 inch square-notch

Always check the manufacturer’s guidelines for specific tile dimensions¹.

Substrate Conditions

Next up was dealing with the substrate. My old house has seen better days, so the floors are far from flat. I found that uneven surfaces might require a larger trowel to fill those pesky gaps and smooth everything out. If you’re working with something like plywood, you’ll want a thin-set with a larger notch to make sure everything sticks together well.

Before applying adhesive, consider using a leveling compound on uneven floors. Here’s more about substrate preparation².

Type of Adhesive

Not all adhesives are the same—trust me, I’ve tried a few. For ceramic tiles, thin-set mortars often suggest larger notches. Always double-check the adhesive packaging to find out what trowel size is recommended for different adhesive types³.

Coverage Requirements

When it comes to areas like bathrooms where water is a constant concern, full coverage is a must to prevent water from seeping in. The right trowel size helps ensure complete adhesion and keeps everything watertight. For more on coverage needs⁴ in wet environments, check this out.

Choosing the right trowel size isn’t just about following the rules; it’s about ensuring your project stands the test of time and the elements. Balance these factors to secure your tiles for the long haul.

How Does Tile Size Influence Your Choice of Trowel?

Choosing the right trowel for your tiles is a game-changer for a smooth installation process.

The size of your tile determines the trowel size you need because larger tiles require more adhesive for stability. Opt for a trowel with a notch size that matches your tile dimensions to ensure adequate coverage.

Understanding the Basics of Trowel Notches

When I first tackled a tile project, I was overwhelmed by the variety of trowels. Each notch type—square, V-notched, U-notched—felt like a secret code I needed to crack. These notches, I discovered, dictate how much adhesive ends up under your tile.

Notch Type	Common Use
Square	Standard for most tiles, especially large ones
V-notched	Ideal for mosaics and smaller tiles
U-notched	Great for thicker adhesives

Matching Trowel Size to Tile Size

I learned the hard way that using the wrong trowel can lead to weak spots in the installation. For those small tiles under 4 inches, a V-notched trowel is often my go-to. But once I started working with those big, impressive 12-inch tiles, I realized a square-notch trowel⁵ was essential to avoid any adhesive gaps.

• Small Tiles: Use a ¼ inch notch.
• Medium Tiles (4-8 inches): Opt for a ⅜ inch notch.
• Large Tiles (8-16 inches): A ½ inch or larger notch may be necessary.

The Role of Tile Thickness

Tile thickness threw me a curveball on one of my projects. Even if the tile wasn’t large, its thickness meant I had to adjust my trowel choice for more adhesive support. It was a valuable lesson in paying attention to all dimensions.

Considering the Substrate

The surface you’re tiling on adds another layer of complexity. I remember dealing with an uneven cement board that seemed determined to make things difficult. In cases like these, a thicker adhesive layer—and therefore a larger notched trowel⁶—was needed to achieve consistent coverage.

Practical Examples and Considerations

Picture this: You’re installing those chic 12×24 inch porcelain tiles in your bathroom. Trust me, you’ll want a ½ inch square-notch trowel⁷ to ensure the mortar covers every nook and cranny of the tile’s back, reducing the risk of hollow spots. Those porcelain beauties demand extra care due to their density and weight.

The Balance Between Efficiency and Aesthetics

It’s a delicate dance between getting the job done right and keeping things looking sharp. Larger notches might be great for adhesion but can cause mortar to seep through grout lines if you’re not careful. Striking the right balance is key to achieving both functional and aesthetic success in your tiling project.

These insights were hard-earned lessons from my own tiling adventures. By understanding these variables, you’ll set yourself up for a project that’s not only stunning but also stands the test of time. Before diving in, consulting with an expert or reviewing trowel size charts⁸ can save you from common pitfalls.

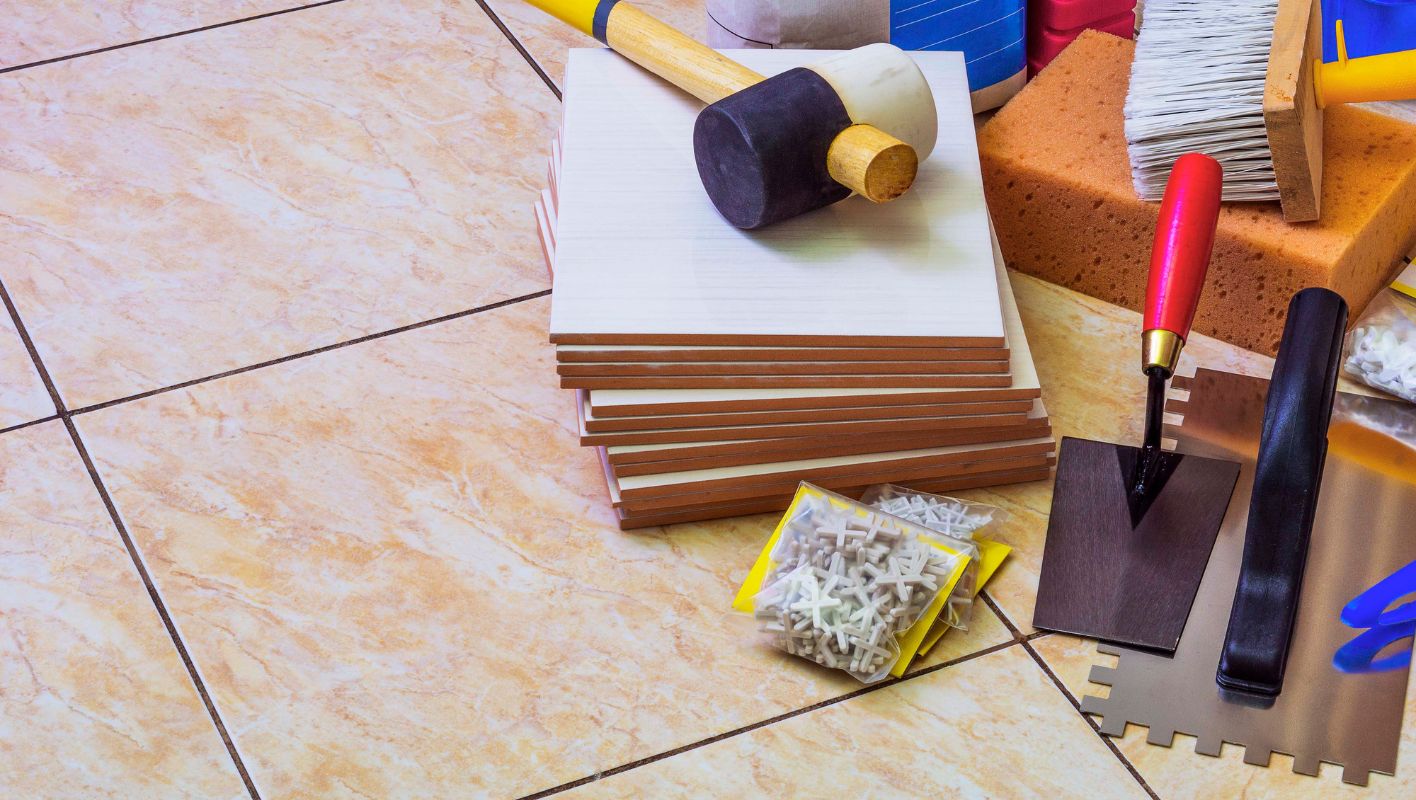

What Are the Different Types of Trowels and Their Uses?

Ever held a trowel and felt its weight, knowing it’s the key to a masterpiece?

Trowels come in various shapes and sizes, each crafted for specific tasks. From brick trowels for laying bricks to pointing trowels for detailed work and finishing trowels for smooth surfaces, selecting the right type enhances your project’s efficiency and quality.

Brick Trowels

I remember the first time I held a brick trowel. It felt like an extension of my hand, guiding each brick into place with precision. Brick trowels are vital for laying bricks and blocks. Their pointed tip and flat surface make them perfect for placing mortar just right between bricks. They come in different sizes, tailored for various tasks. Using the best brick trowels⁹ transforms a chaotic pile of bricks into a seamless wall of art.

Pointing Trowels

Ah, pointing trowels—the tiny but mighty heroes of fine detailing. With their narrow blade, they’re ideal for the meticulous job of filling joints between bricks or stones. I’ve often found myself lost in the rhythm of using a pointing trowel, especially during brick restoration¹⁰ projects. Its sharp point makes precision work almost therapeutic.

Finishing Trowels

When it comes to achieving that picture-perfect smooth finish, finishing trowels are your best friends. Their flat, wide blade effortlessly smooths plaster, concrete, or stucco surfaces, leaving a polished look that’s crucial for visual appeal. A smooth finish¹¹ isn’t just about aesthetics; it’s about pride in one’s craft.

Specialty Trowels

1. Margin Trowels: These are lifesavers in tight spots where larger tools simply can’t fit.
2. Notched Trowels: With serrated edges, they excel at spreading adhesives evenly.
3. Bucket Trowels: Designed with shorter handles for scooping materials directly from buckets—perfect when every minute counts.

Trowel Comparison Table

Type	Primary Use	Key Features
Brick Trowel	Laying bricks	Pointed tip, flat surface
Pointing Trowel	Filling joints	Narrow blade, sharp point
Finishing Trowel	Smoothing surfaces	Flat wide blade
Margin Trowel	Confined space work	Compact size
Notched Trowel	Spreading adhesives	Serrated edges
Bucket Trowel	Scooping from buckets	Short handle

Choosing the right trowel is like picking the perfect paintbrush—it can make or break your masterpiece. Whether you’re embarking on a masonry project¹² or simply refining your tool kit, understanding these types helps ensure your work is efficient and beautifully executed.

How Can You Test If You’ve Chosen the Correct Trowel Size?

Ever wondered if your trowel size is the unsung hero behind a flawless tile job?

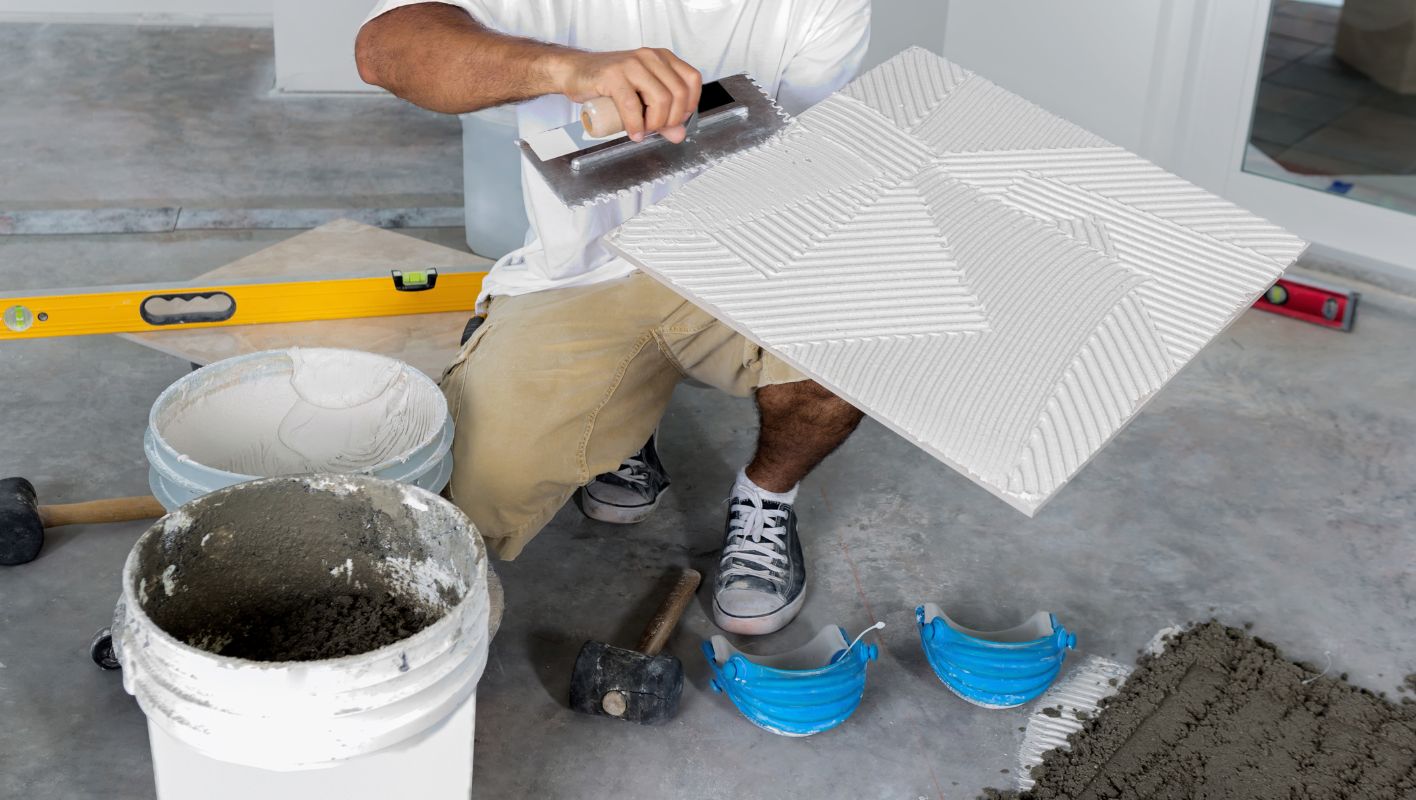

To test if you’ve chosen the correct trowel size, spread a small amount of adhesive and place a tile. Lift the tile to check if 80-100% of its back is covered with adhesive.

I remember my first big tiling project, standing in the aisle of a home improvement store, trowels of every shape and size laid out before me. It was overwhelming, like being in a bookstore without knowing which author to choose. Over the years, I’ve learned that picking the right trowel size is as crucial as choosing the right book—each one tells a different story in your tile work.

Understanding Trowel Size Basics

Trowels come in various sizes, each designed for different types of tiles and applications. The size refers to the notches on the trowel, which create ridges in the adhesive. These ridges are crucial for achieving proper tile adhesion¹³.

Common Trowel Sizes

Trowel Size	Tile Type
1/4" x 1/4"	Small wall tiles
1/4" x 3/8"	Medium floor tiles
1/2" x 1/2"	Large format tiles

Practical Testing Method

There’s something satisfying about testing things yourself, isn’t there? Here’s how I do it:

1. Spread Adhesive: Apply a thin layer of adhesive on your working surface using the chosen trowel.
2. Place a Tile: Press a tile firmly onto the adhesive.
3. Lift the Tile: Remove it gently to see how much adhesive is on the back. Ideally, 80-100% should be covered.

This method ensures that the adhesive is applied evenly, which is critical for tile durability¹⁴. If less than 80% is covered, consider trying a larger trowel size.

Factors Influencing Trowel Size Choice

• Tile Size: Larger tiles typically require larger notches.
• Surface Flatness: Uneven surfaces may need a bigger trowel to ensure complete coverage.
• Adhesive Type: Different adhesives have specific requirements for notch depth.

These factors can help you better understand why a certain trowel might be more effective for your specific project. Whether you’re a seasoned pro or just starting out, getting to know your tools can make all the difference.

Explore more about trowel techniques¹⁵ to refine your skills and ensure successful tile installations every time. It’s like learning to dance; once you find your rhythm with the right trowel, everything else falls into place.

Conclusion

Choosing the right trowel size for tile installation is crucial, influenced by tile dimensions, substrate conditions, and adhesive type to ensure proper coverage and adhesion.
